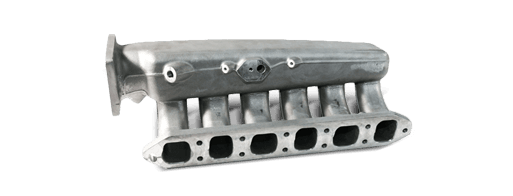

Intake manifold for automobile

car parts of high quality >
Spare: Inlet manifold, Air intake manifold, Air inlet manifold, Intake manifold module, Fitting intake manifold original
Engine Car parts : Motor oil (engine fluid) - Water pump + timing belt kit - Engine mount & gearbox mount - Drain plug & oil drain plug seal - Gaskets - Valve cover gasket (rocker gasket) - Cylinder head gaskets (engine gasket) - Intake manifold gasket - Crankcase breather - Egr valve (agr) - Crankshaft seal - Turbocharger hose - Timing chain - Head bolts & cylinder head bolt kit - Oil dipstick - Turbo control valve (boost pressure control valve) - Oil pan gasket (oil sump gasket) - Oil sump - Crankshaft pulley - Injectors - Throttle - Valve stem oil seals (valve seals) - Piston rings & piston ring set - Intercooler - Rod bearing (connecting rod bearing) - Hydraulic lifter & rocker arm - Camshaft seal - Oil pump - Exhaust valve - Inlet valves - Cam kit (camshaft kit) - Timing chain tensioner - Valve cover & cylinder head - Throttle cable - Idle control valve - Cam gear - Piston - Cylinder block (motor block) - Crankshaft

Air inlet manifold - Find your car parts

Information - Air intake manifold

Intake manifold: replacement and selection

When and why it is necessary to replace intake manifold

Manufacturers do not limit operational lifetime of this car part by certain terms. Replacement of the component is performed at its deformation and in case of appearance of cracks on it, holes or other mechanical damages, leading to violation of unit hermeticity.

The part can deform due to continuous influence of high temperature, for instance, at breakdowns in the cooling system. Appearance of cracks on the part can be caused by engine vibrations. Moreover, damages and displacement of the manifold are the common result of the improper installation.

Defectiveness of the component will be indicated by the following signs: lowering of power and unstable rpm of the engine, increased fuel consumption, worsening of acceleration dynamics and motor vibration at idle run. In addition, breakage of the intake manifold can come with humming sound from the operating engine.

Replacement of the part should be performed at a service station. This procedure presupposes work with car electronics, which requires special knowledge. In particular, you will need to demount the throttle sensor, in some cases – the fuel injectors. Replacement of the gaskets is performed during installation of a new components in order to assure hermeticity of the unit. Moreover, it is recommended to clean the throttle – so that you will prolong its operational lifetime.

How to select intake manifold

Durable vibration- and heat-resistant materials are used for manufacturing of these car parts.

Thus, the manifolds can be made of aluminum, cast iron and steel. The parts made of composite materials are the most popular.

According to construction the components are divided into two groups: single-plane and dual-plane. The single-plane ones have a chamber, through which fuel-air mixture is supplied together with the whole flow into all the cylinders. In the dual-plane components mixture flows through two channels. The dual-plane manifolds are most common, as their construction allows to increase engine power at low and medium rpms, also ensuring fuel economy and reducing toxicity of exhaust gases.

Thus, there are intake variable-length manifolds, with turbocharger, with the direct fuel injection system, with exhaust gases control valves (EGR). Presence of any system noted above allows to increase engine power.

In order to make the car part function faultlessly during a continuous time period, you should purchase reliable manufacturers production. High-quality intake manifolds are presented in the assortment of Bosch, Vaico, Metzger, Pierburg and other brands.

The component should be selected in accordance with the type, capacity and power of the engine. A type of the idle air control valve installed is the important selection criterion. Apart from this, you need to pay attention to total volume of the manifold, receiver, and diameter and length of the pipes, coming from the receiver to the cylinder block.

Intake manifold at low cost: Top Spares

Sensor, suction pipe reverse flap CAWB, CBFA, CCZA (RIDEX, 4143S0002) -28%
original Sensor, suction pipe reverse flap RIDEX 4143S0002 Article №: 4143S0002
RIDEX Sensor, suction pipe reverse flap 4143S0002
£ 43,49**
£ 31,31
incl. 20% VAT, excl. delivery costs
Intake Manifold Module with screws, with seal, EXPERT KITS + (VAICO, V10-4477) -28%
original Intake Manifold Module VAICO V10-4477 Article №: V10-4477
VAICO Intake Manifold Module V10-4477
£ 292,49**
£ 210,59
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Supplementary Article/Info 2 with screws
  • Fuel Type Diesel
  • Regulator without control regulator
  • Seal Material NBR (nitrile butadiene rubber)
  • Housing material Polyamid 6
  • Supplementary Article/Supplementary Info with seal
  • Weight [kg] 1,489
  • Supplementary Info EXPERT KITS +
  • Packaging width [cm] 17,5
  • Packaging height [cm] 44,1
  • Condition  New
Details
Intake Manifold Module (ESEN SKV, 96SKV017) -28%
original Intake Manifold Module ESEN SKV 96SKV017 Article №: 96SKV017
ESEN SKV Intake Manifold Module 96SKV017
£ 125,49**
£ 90,35
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Weight [kg] 0,90
  • Condition  New
Details
Intake Manifold Module with gaskets/seals (METZGER, 2100039) -28%
original Intake Manifold Module METZGER 2100039 Article №: 2100039
METZGER Intake Manifold Module 2100039
£ 208,99**
£ 150,47
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Supplementary Article/Supplementary Info with gaskets/seals
  • Regulator without control regulator
  • Additionally required articles (article numbers) 2100030
  • Condition  New
Details
Intake Manifold Module with sensor, without valves, with seal, EXPERT KITS + (VAICO, V10-3954) -28%
original Intake Manifold Module VAICO V10-3954 Article №: V10-3954
VAICO Intake Manifold Module V10-3954
£ 228,49**
£ 164,51
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Fuel Type Petrol
  • Supplementary Article/Info 2 with sensor, without valves
  • Supplementary Article/Supplementary Info with seal
  • Housing material Polyamid 6.6
  • Seal Material NBR (nitrile butadiene rubber)
  • Weight [kg] 2,504
  • Supplementary Info EXPERT KITS +
  • Packaging width [cm] 36,3
  • Packaging height [cm] 20,5
  • Packaging Depth [cm] 52,5
  • Condition  New
Details
Intake Manifold, air supply (METZGER, 2400540) -28%
original Intake Manifold, air supply METZGER 2400540 Article №: 2400540
METZGER Intake Manifold, air supply 2400540
£ 55,49**
£ 39,95
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Fitting Position Exhaust Turbocharger, Left
  • Condition  New
Details
Intake Manifold Module with seal (BUGIAD, BIM17008) -28%
original Intake Manifold Module BUGIAD BIM17008 Article №: BIM17008
BUGIAD Intake Manifold Module BIM17008
£ 156,99**
£ 113,03
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Material Plastic
  • Supplementary Article/Supplementary Info with seal
  • for OE number 06J133201AS
  • Condition  New
Details
Intake Manifold Module (VAICO, V10-5268) -28%
original Intake Manifold Module VAICO V10-5268 Article №: V10-5268
VAICO Intake Manifold Module V10-5268
£ 385,49**
£ 277,55
incl. 20% VAT, excl. delivery costs
Over 100 items in stock
  • Fuel Type Diesel
  • Seal Material NBR (nitrile butadiene rubber)
  • Regulator with control regulator
  • Housing material Polyamid 6.6
  • Condition  New
Details
