Information - Expansion valve

Expansion valve is a part that serves to control the amount of coolant that enters the evaporator. When speaking about its construction, the expansion valve is a variable section throttle. This spare part is set up behind the drier’s filter on the evaporator inlet branch. Its main function is to reduce coolant pressure and temperature to such a limit that when passing through the evaporator evaporation and intensive heat exchange to be provided. As for the sensing hole, it lowers the pressure of the fluid entering the valve. That coolant that enters the drier filter is a liquid under high pressure.

When the coolant passes through expansion valve opening, it is sprayed. At the same time, the temperature and pressure of the substance decreases. This is necessary to facilitate the entire evaporation process of the coolant directly in the evaporator. To find out how the amount of the coolant that passes through the thermostatic expansion valve is regulated let us describe the process. In thermal contact with the evaporator exhaust pipe there is located temperature sensor.

Inside it in the capillary tube and the bellows there is gas - coolant. When the temperature of the exhaust pipe is increased, the pressure of the coolant in the sensor respectively increases and the bellows stretches. Through the traction bottom of the bellows pressures on the ball or needle that increases coolant flow when moving. It passes through the expansion valve and causes temperature decrease of the output tubes and evaporator. As a reaction, coolant pressure in the sensor is reduced, the bellows is compressed and the ball closes the throttle. This results in coolant flow reduction.

If it was diagnosed that the expansion valve is damage, it must be replaced by a new one, since it is not subject to repair.

To save your money do not buy spare parts, like fan, hoses or radiator in car workshops. It is better to visit our web site where you will find necessary original car parts at the best prices.

What you need to know about air conditioner expansion valve: lifetime limits, common defects and their signs, tips and recommendations

An air conditioner expansion valve has no certain lifetime limit. Replacement of the air conditioner expansion valve is performed in case of its heavy clogging, for example, with metal debris. Moreover, the AC expansion valve is replaced because of jamming or mechanical damage.

Defects of the air conditioner expansion valve can be indicated by such signs: irregularities of cool air supply into the cabin, spontaneous turning off of the conditioner. In some cases the car conditioner works correctly only at high engine rpm.

Diagnostics of the AC thermal expansion valve (TXV) should be performed at a service station only. For this you’ll need to measure the refrigerant pressure in different parts of the circuit. Also, specialists will estimate the air conditioning system state if necessary (for example, icing on the evaporator can indicate clogging of an AC compressor control valve).

Replacement of the car AC expansion valve is performed at a service station because incorrect servicing can cause depressurization of the whole system. Moreover, this procedure requires a refrigerant recovery station, a vacuum pump and other special equipment.

Ac expansion valve at low cost: Top Spares

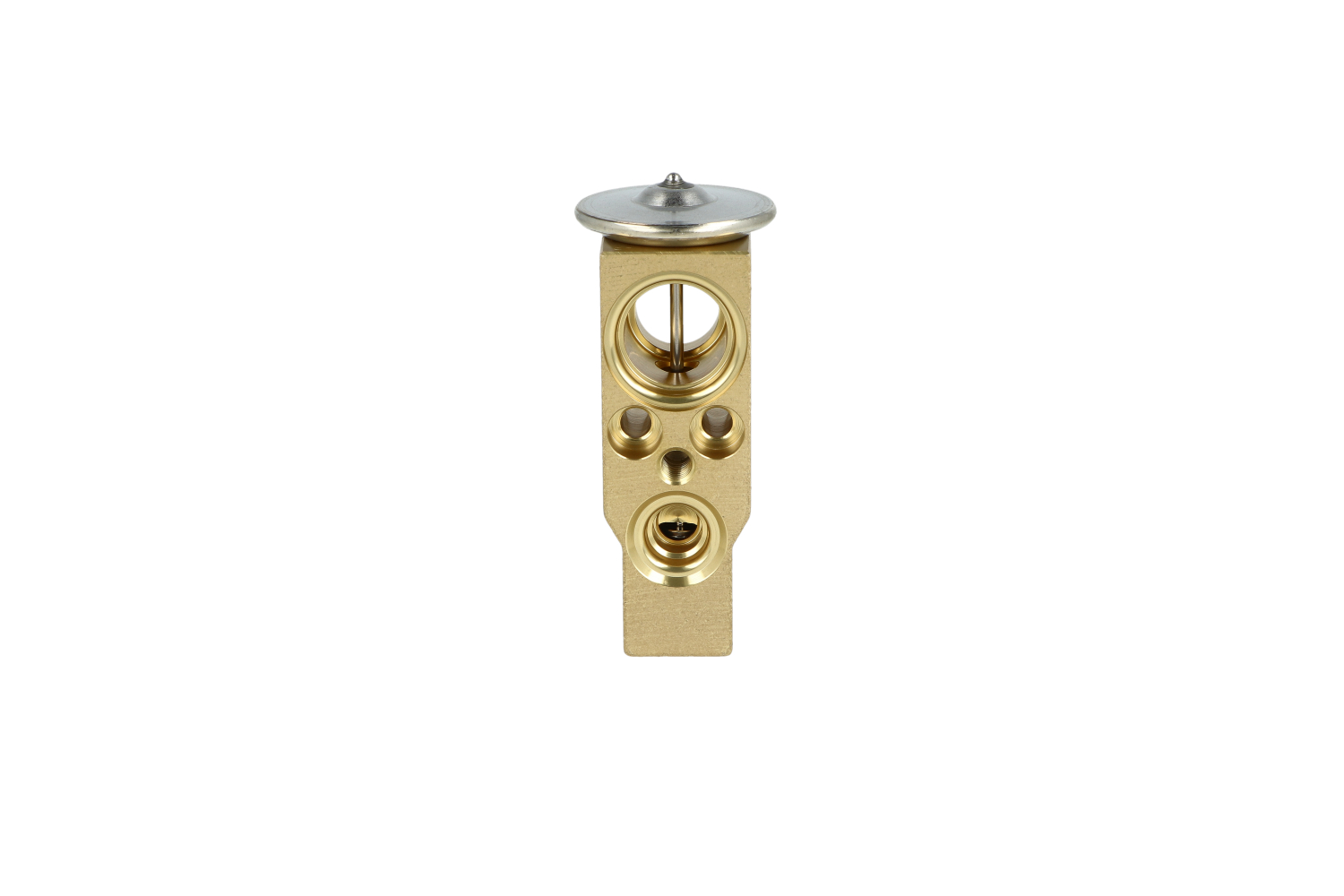

Expansion Valve, air conditioning (NRF, 38449) -19%
Expansion Valve, air conditioning | NRF 38449 Article №: 38449
NRF Expansion Valve, air conditioning 38449
£ 2,49
£ 2,02
incl. 20% VAT, Shipping
Expansion Valve, air conditioning (AKS DASIS, 840800N) -19%
Expansion Valve, air conditioning | AKS DASIS 840800N Article №: 840800N
AKS DASIS Expansion Valve, air conditioning 840800N
£ 22,99
£ 18,62
incl. 20% VAT, Shipping
Over 100 items in stock
  • Specification O-Ring
  • Pressure side internal thread size 3/8 / 3/4
  • Suction side internal thread size 3/4 / 3/4
  • Packaging length [cm] 13
  • Packaging width [cm] 10
  • Packaging height [cm] 8,5
  • Weight [kg] 0,18
  • Condition  New
Details
Expansion Valve, air conditioning Platform/Chassis (NRF, 38208) -19%
Expansion Valve, air conditioning | NRF 38208 Article №: 38208
NRF Expansion Valve, air conditioning 38208
£ 1,99
£ 1,61
incl. 20% VAT, Shipping
Expansion Valve, air conditioning (MAXGEAR, AC111568) -19%
Expansion Valve, air conditioning | MAXGEAR AC111568 Article №: AC111568
MAXGEAR Expansion Valve, air conditioning AC111568
£ 16,49
£ 13,36
incl. 20% VAT, Shipping
Over 100 items in stock
  • Compressor ID TBF 1,5
  • Thread Size 1 17.75
  • Thread Size 2 8.61
  • Condition  New
Details
Expansion Valve, air conditioning BEHR HELLA SERVICE *** PREMIUM LINE *** (HELLA, 8UW 351 239-401) -19%
Expansion Valve, air conditioning | HELLA 8UW 351 239-401 Article №: 8UW 351 239-401
HELLA Expansion Valve, air conditioning 8UW 351 239-401
£ 41,49
£ 33,61
incl. 20% VAT, Shipping
Over 100 items in stock
  • Diameter [mm] 12 / 10, 18 / 18
  • Refrigerant R 134a
  • Supplementary Info BEHR HELLA SERVICE *** PREMIUM LINE ***
  • Condition  New
Details
Expansion Valve, air conditioning Caravelle Front for right-hand drive vehicles Spain (DELPHI, TSP0585062) -19%
Expansion Valve, air conditioning | DELPHI TSP0585062 Article №: TSP0585062
DELPHI Expansion Valve, air conditioning TSP0585062
£ 26,99
£ 21,86
incl. 20% VAT, Shipping
Over 100 items in stock
  • Thread Size 1 17.75
  • Thread Size 2 8.6
  • Condition  New
Details
Injector Nozzle, expansion valve for left-hand drive vehicles (HELLA, 8UW 351 233-001) -19%
Injector Nozzle, expansion valve | HELLA 8UW 351 233-001 Article №: 8UW 351 233-001
HELLA Injector Nozzle, expansion valve 8UW 351 233-001
£ 2,49
£ 2,02
incl. 20% VAT, Shipping
Expansion Valve, air conditioning Kangoo Rapid (THERMOTEC, KTT140036) -19%
Expansion Valve, air conditioning | THERMOTEC KTT140036 Article №: KTT140036
THERMOTEC Expansion Valve, air conditioning KTT140036
£ 22,99
£ 18,62
incl. 20% VAT, Shipping
